65 seats coach bus in right hand drive

  • 65 seats coach bus in right hand drive
  • 65 seats coach bus in right hand drive
  • 65 seats coach bus in right hand drive
  • 65 seats coach bus in right hand drive

65 seats coach bus in right hand drive

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Piece/Pieces
    Delivery Time: 10 Days
    Packaging: RUDE
    Productivity: 1000 units per month
    Brand: Asia Star
    Transportation: Ocean
    Place of Origin: Suzhou
    Supply Ability: 1000 units per month
    Certificate: CE and ISO certificate
    Port: Shanghai,Qingdao

Basic Info

Model No.: DF-121

Product Description

65 Seats coach bus in right hand drive





Overall specification

Overall length(mm)总长

 12010

Engine

Engine model 发动机型号

L325 20

Overall width(mm)总宽

 2550

Manufacture制造商

Cummins

Overall height(mm) 总高

 3900

Engine position 位置

Front

Wheel base (mm)轴距

 6150

Fuel Type 燃油类型

Diesel 柴油

F/R overhang(mm)前后悬

2370/3490

Max power (kw/hp)/rpm最大功率

239/2200

Max G.V.W(kg)最大总质量

18000

Max torque(N.M/rpm)最大扭距

1300/1400

Seat capacity 载客数

63+1+1

(2+2 seat layout)

Tank volume (L)油箱容积

600

Max speed(km/h)

110

Emission Standard 排放

Euro 2

Seq

Item

Standard

Optional

1

Engine发动机

Cummins L325 20 (325ho,Euro II)

康明斯L325 20(325马力,欧2排放)



2

Oil tank 油箱

600L iron tank

600L铁油箱



3

Gearbox变速箱

6DS150T six speed (manual)

法士特6DS150T 六档手动箱



4

Clutch离合器

sachs Ø430 clutchWABCO Clutch Master Cylinder

萨克斯免维护离合器WABCO 离合总泵分泵



5

Front axle前桥

Loading capacity: 8 T,drum brake

前桥载荷:8,式制动



6

Rear axle后桥

Loading capacity: 13 T,drum brake

后桥载荷:13 T,鼓式制动



7

Braking system制动系统

Dual-circuit pneumatic brake

Power storage spring parking brakeAir tank connected to the frame by bolt

双回路气压式制动

储能弹簧驻车制动(储气罐螺栓连接在车架上)



8

Suspension悬挂

Leaf springreinforced

板簧悬架,多片簧

9

Steering转向

Power steering, L.H.D, BOSCH 8098

BOSCH 8098动力转向,



10

ABS

With ABS

国产ABS



11

Automatic adjustable slack 自动调整臂

With automatic adjustable slack

带自动调整臂



12

Retarder缓速器

E-retarder

电涡流缓速器



13

Centralization lubrication集中润滑

No

无



14

Cooling system

冷却系统

High capacity watertank and intercooler

加强型水箱及中冷器,增强散热效果



15

Tire轮胎

12R22.5 tubeless radial tireDouble Coinwith spare tyre

12R22.5 真空胎,双钱轮胎,带备胎



16

Wheel cover轮罩

Stainless steel wheel cover

不锈钢轮罩(半罩)



17

Fan/ A/C风扇/空调

Drivers fanValeo 32000 kcal roof mounted independent A/C

增加驾驶员风扇,法雷奥3.2万大卡非独立顶置空调



18

Heater暖风

NO



19

Defroster除霜

Defroster for front windshield

前风挡除霜系统, 自然风



20

Passenger door/Front door乘客门/前门

Front pneumatic swing outward door, driver door remote control locker

前气动外摆门,带司机门(带内藏式推拉窗)遥控门锁



21

Passenger door/Middle door乘客门/中门

NO

22

Side window侧窗

Side sliding window, light black glassup 2/3 sliding, down 1/3 fixed.

Built-in type rear side window

侧窗:全铝合金侧推拉窗(2/3推拉,1/3固定结玻璃) ,浅黑色玻璃

23

Windshield

/后风挡

Front glued fully closed two pieces windshield with front LED route board and rear windshield closed

前胶粘全封闭风挡(两块), 后挡风封闭,带前电子路牌

24

Passenger seats乘客座椅

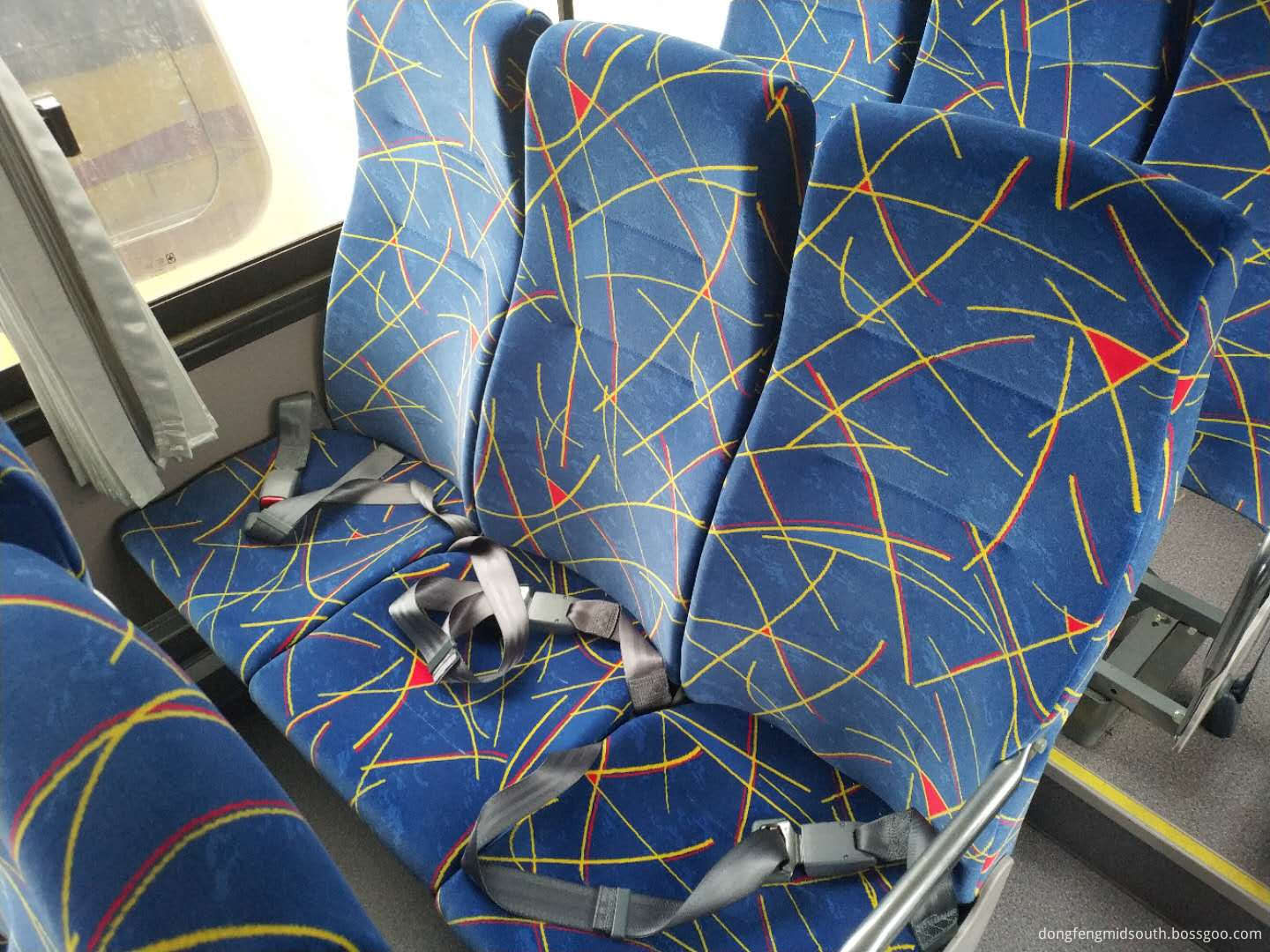

53seats,2+2 JS-S5 type High backrest seats with safe belts and tuck net

532+2 佳松JS-S5高靠背可调座椅,带网兜带简易式两点安全带

25

Driver’s seat驾驶员座椅

High backrest mechanical seat with three-point safe belt,

高靠背机械式司机椅,带三点式安全带



26

Guide seats导游椅

No



27

Interior lighting车内照明

Roof lightand step light

顶灯(可为LED单体灯),踏步灯



28

Reading lamp阅读灯

Yes



29

Trim内饰

Standard A/C interior trimming

标准空调内饰



30

Interior rack 内行李架

Inner roof rack (two sides)

内顶行李架(双边)



31

Compartment行李仓

Side luggage compartment, >=8m3open through the chassis to the opposite side; a tunnel from rear luggage compartment to enginefloor aluminium checkered plates for side compartment and rear compartment.

改平地板,贯通式行李仓;增加一个从后行李舱到发动机的长通道,侧行李舱及后行李舱地板铺铝花纹



32

Side compartment door侧行李仓门

Rotation aluminium alloy side compartment door

翻转式铝合金行李仓门,使用如图式舱门把手



33

Roof rack顶行李架

No



34

Rearview倒车镜

Standard rear-view mirror

标配倒车镜



35

Floor地板

Local anti-skidding floor wooden strip

国产仿木条纹耐磨地板革



36

Audiovisual equipment视听设备

240G disk displayer with two 19’ LCD(front and middle)

240G硬盘播放器带19寸液显(固定式,台为电动翻转)



37

Digital clock电子钟

With digital clock

带电子钟



38

Water dispenser饮水机

Yes



39

Toilet卫生间

No



40

Emergency exit安全出口

Roof hatch(two)

顶出口(两个)



41

Recorder or GPS记录仪或GPS

With Local recorder(English version)

国产电子行车记录仪(英文版)



42

Curtain窗帘

Side cloth curtainblue

侧窗帘,蓝色



43

Sun visor遮阳帘

Half sun-visor for front windshield(half)

前风挡单幅手动遮阳帘



44

Guardrail护栏

With safe guard

带护栏



45

Astern monitor倒车监视器

With reversing monitor

彩色液晶倒车监视器



46

Fire extinguisher plant机舱灭火装置

Automatic extinguisher in engine compartment

发动机仓灭火装置



47

CAN CAN总线

No, as options



48

Paint漆种

Imported solid paint

进口素色漆



49

Other其他

Safe hammer (four)

Front bumper,add rear towing device for goods around 10 tuns

Add a string at the back carbine door for the convenience of closing

Raise the position of the rear compartment light to avoid collision from the luggage

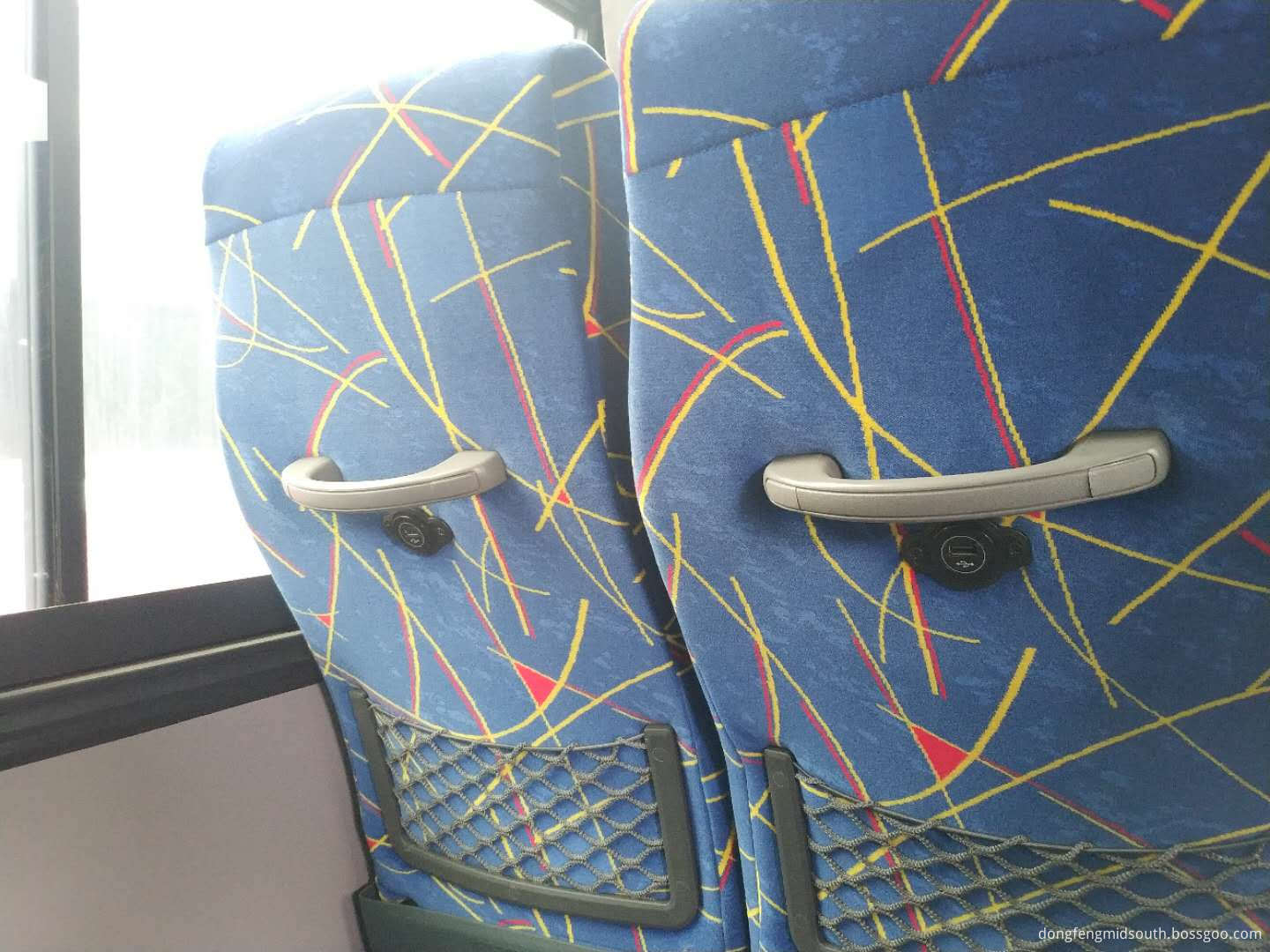

USB charger for every passengerat the back of the passenger seats

Add Airhorn

4个安全锤

前防撞梁,后部带拖挂(用于客户自行连接额外行李拖箱,约10吨)(拖挂装置处请预留好刹车,尾灯,雾灯等电信号及气管路)

后行李舱门增加一条绳索以便客户关闭舱门

座椅靠背带USB充电

提高后行李舱灯位置,防止与行李的碰撞

使用新前围造型(车标Logo使用通电发光型),前围内加装防虫网,中冷器上部及下部涂黑

加装气喇叭



50

Use conditions使用工况

Bad road situation

糟糕路况



65 seats coach bus (2)65 seats coach bus (3)65 seats coach bus (4)65 seats coach bus (6)65 seats coach bus (7)65 seats coach bus (8)
